Description:

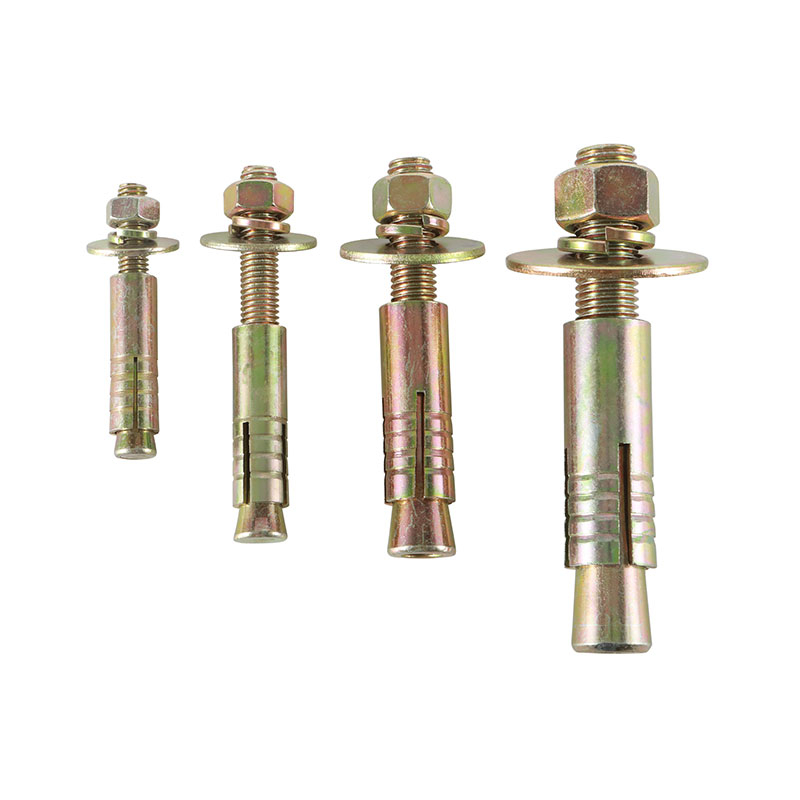

The product is mainly used for heavy-duty facilities and installation of large guide rail brackets, featuring excellent earthquake resistance and durability. This product has a higher load-bearing capacity, and the interlocking sleeves ensure the reduction of the impact of expansion stress, greatly improving the reliability of anchoring.
Scope of application:
Concrete with strength greater than C20
Natural stone
Specifications
Size | Length | Sleeve length | Minimum tensile load | Material | Finish Option |
M8 | 70-90mm | 50mm | 9KN | Carbon steel Stainless steel | Zinc-galvanized HDG Dacromet |
M10 | 90-110mm | 60mm | 13.5KN | ||
M12 | 100-120mm | 70mm | 17KN | ||
M16 | 140-160mm | 100mm | 28KN |
